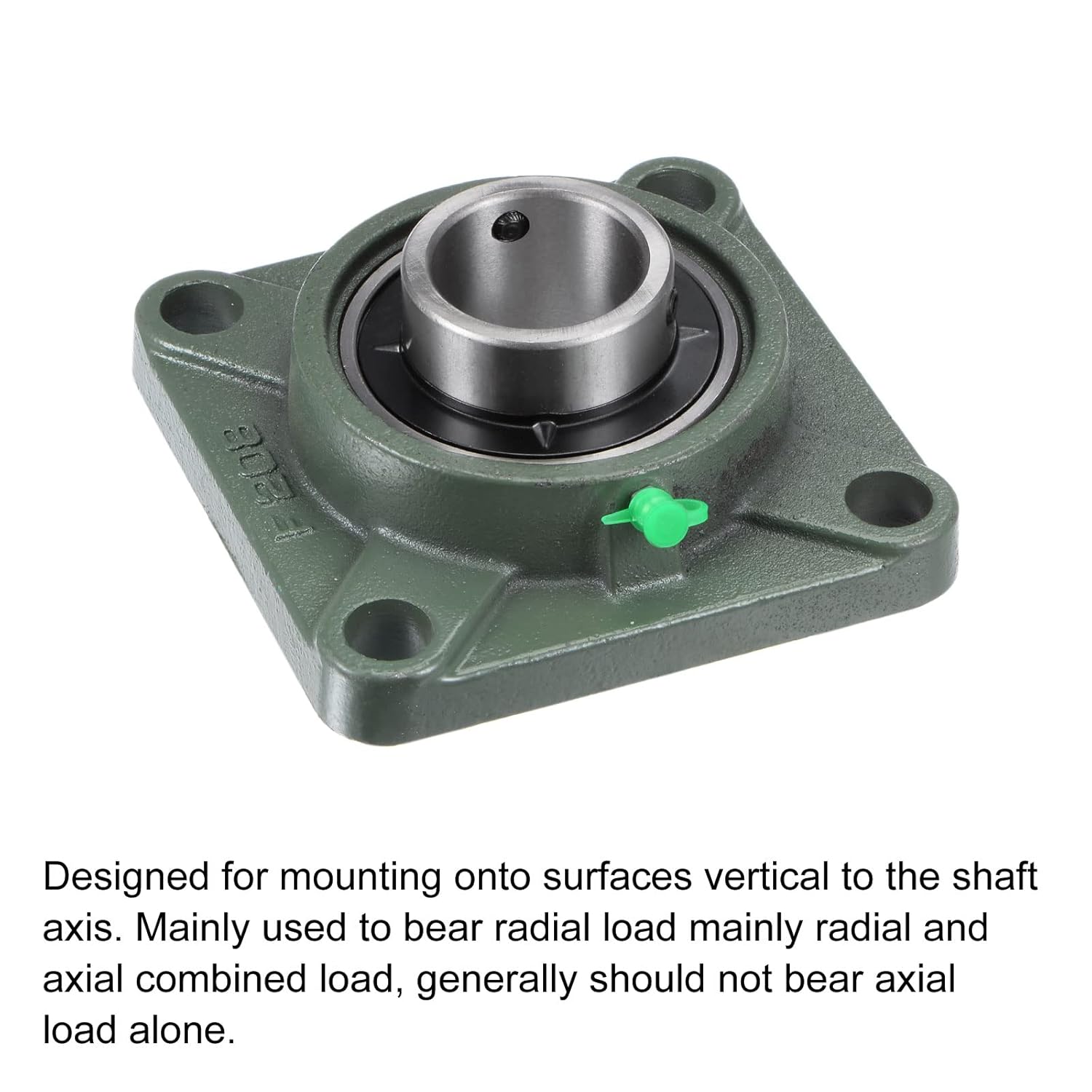

uxcell UCF208 Flange Block Bearings 40mm Bore Cast Iron Bearing Unit Set Screw Lock

A pillow block contains a housing and a double sealed insert self-alignment bearing that avoid any misalignment.Bearing housings are made of Cast Iron while bearings are made of Chromium Steel (GCr15), giving them low friction, vibration and noise.Pillow block Bearings have holes for installation. It is easy to replace.The set screws enable the shaft to be fixed to the inner ring of the bearing and prevent slippage.Specification:Model: UCF208Housing Material: Cast IronBearing Material: Chromium Steel (GCr15)Bore Diameter: 40mmMounting Hole Diameter: 16mmMounting Hole Distance: 103mmTotal Size: 130 x 130 x 52mm(L*W*H)Package Content:1 x Flange Block Bearing

• Size: 40mm Inner Diameter, 16mm Mounting Hole Diameter, 103mm Mounting Hole Distance, Model: UCF208
• Material: Cast iron housing, chrome steel insert bearing. Smooth and low noise, easy to install.
• Feature: Widely used in machinery and equipment with mechanical stops for applications with high requirements for shaft center position.
• Application: Designed for mounting onto surfaces vertical to the shaft axis. Mainly used to bear radial load mainly radial and axial combined load, generally should not bear axial load alone.
• Package Content: 1 x Flange Block Bearing
